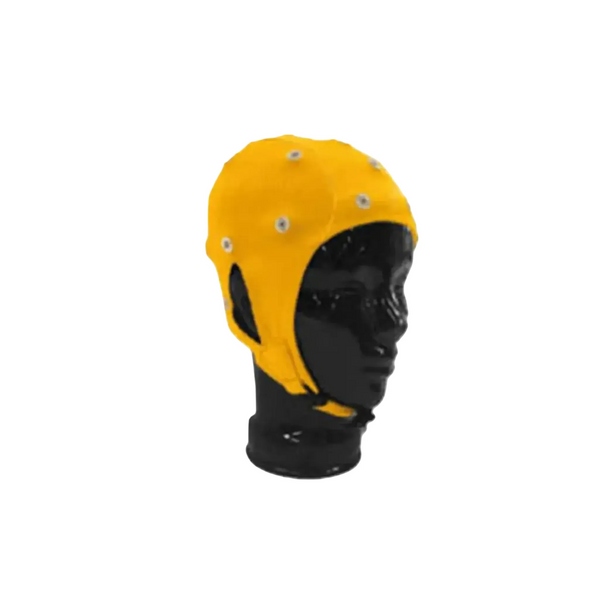

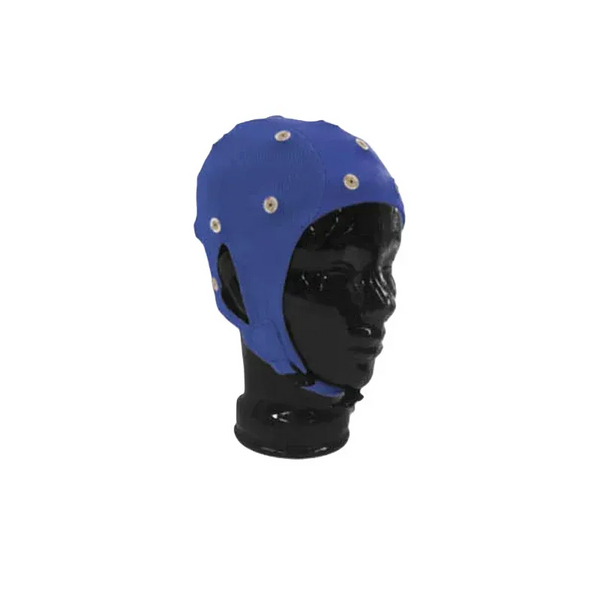

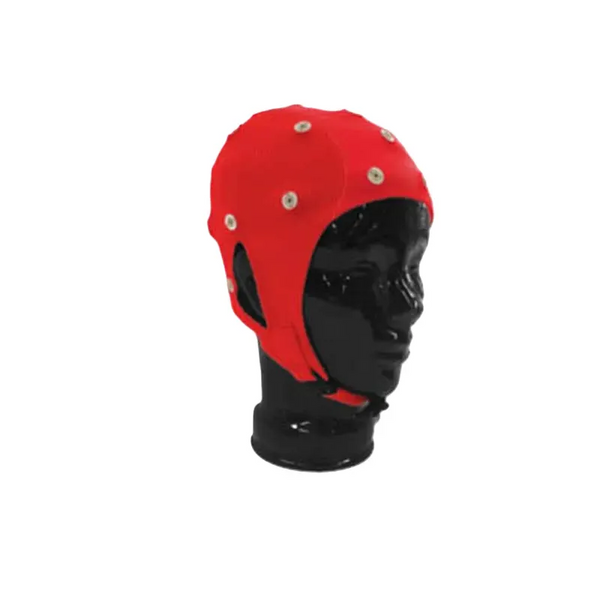

Waveguard EEG system hood, various sizes for infants / toddlers and children

The Waveguard EEG system cap for infants, toddlers, and children is a clinical EEG cap for fast and reliable recording of EEG (electroencephalogram) as well as event-related and evoked potentials.

The hood has 21 integrated tin electrodes plus GND and REF according to the international 10/20 system. The reference position is at Cpz.

Thanks to the integrated electrode structure, no loose cables are required, which significantly simplifies use in everyday clinical practice.

Technical features:

• 21 Tin electrodes + GND + REF
• Arrangement according to the 10/20 system
• Reference position: Cpz
• 1.5 m cable length
• Adapter: DB25 (female) to 1.5 mm DIN
• Can be disinfected with a short drying time
• High wearing comfort, even in the lying position

• Long service life

Application:

• EEG (electroencephalogram)
• Event-related potentials (EKP)
• Evoked potentials (EP)

The system hood is available in different sizes for infants, toddlers, and children. The short drying time ensures high availability in clinical settings. The reduced need for consumables contributes to cost efficiency.

Compatibility (selection):

• NicoletOne
• SOMNOmedics
• Mitsar
• Nihon Kohden
• Micromed

Other versions with 24, 32, 43, 64, 128, or 256 electrodes (e.g., for research EEG) are available upon request.

Recommended accessories:

• Adapter for waveguard EEG system Caps


Video tutorial - Waveguard EEG caps
