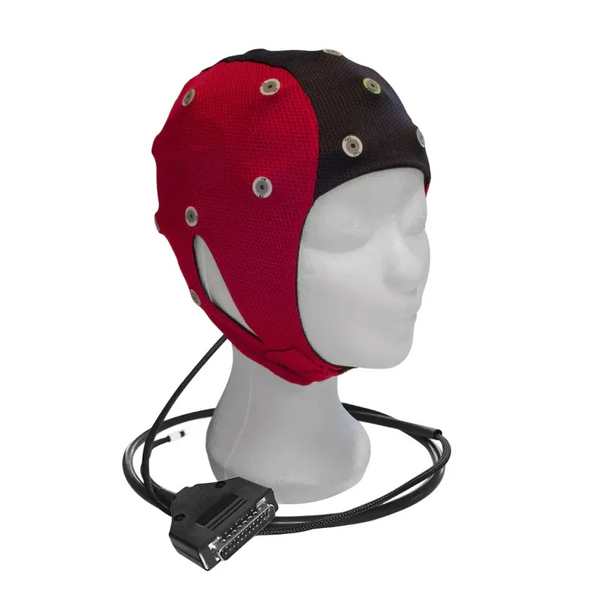

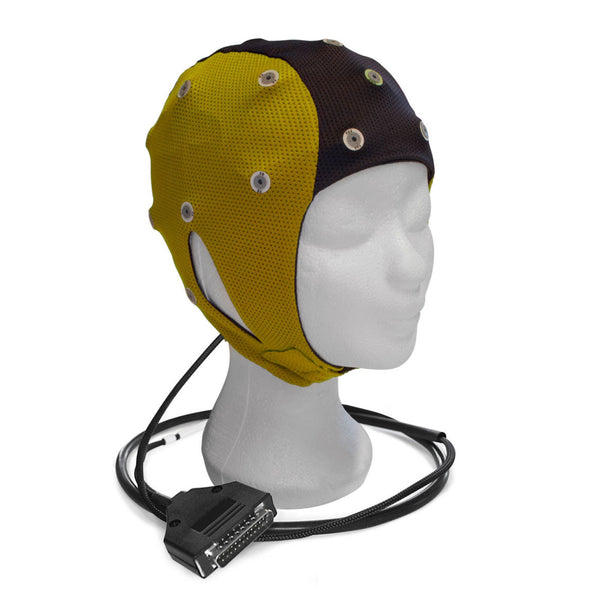

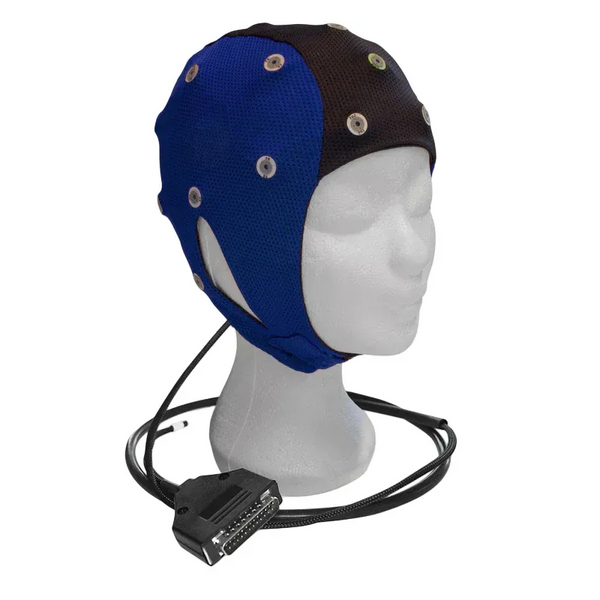

Waveguard EEG system hood for adults, various sizes

The Waveguard EEG System Cap for adults is a reusable, clinical EEG cap for professional recording of:

• EEG (electroencephalogram)
• Event-related potentials (ERP)
• Evoked potentials (EP)

The hood has 21 integrated tin electrodes + GND + REF according to the international 10–20 system.
The reference position is at CPz.

Thanks to the integrated electrode structure, no loose cables are required, which simplifies handling in everyday clinical practice.

Technical features

• 21 integrated tin electrodes + GND + REF
• 10–20 system
• Reference position: CPz1.5 m cable length
• Adapter: DB25 (female) to 1.5 mm DIN
• Can be disinfected
• Short drying time
• High wearing comfort
• Long service life

Areas of application

• routine EEG
• Long-term EEG
• epilepsy diagnosis
• EP and ECP diagnostics
• Clinical Neurophysiology

The short drying time ensures rapid reusability in everyday clinical practice.

Compatibility (selection)

• NicoletOne
• SOMNOmedics
• Mitsar
• Nihon Kohden
• Micromed

Other systems available on request.

Other variants

Available with:

• 24 electrodes
• 32 electrodes
• 43 electrodes
• 64 electrodes
• 128 electrodes
• 256 electrodes (research EEG)

Recommended accessories:

• Adapter for Waveguard EEG system caps


Video tutorial - Waveguard EEG caps
