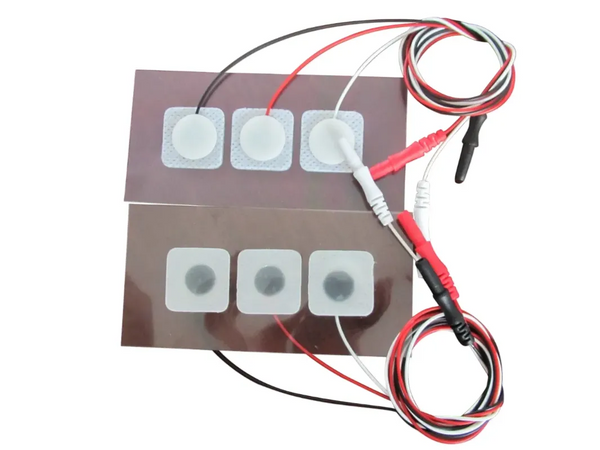

CNSAC Pre-wired electrode for infants, 60 cm cable

High-quality ECG electrodes with silver/silver chloride sensor

The CNSAC pre-wired ECG electrode for infants has been specially developed for cardiac monitoring in newborns and infants.

With a compact size of 22 × 22 mm, it is ideal for sensitive, small areas of skin.

The integrated silver/silver chloride sensor (Ag/AgCl) in combination with Festgel ensures stable and reliable signal transmission with minimal skin irritation.

The 60 cm long connection cable with DIN plug allows direct connection to the monitor without an additional adapter cable.

Technical features

• Pre-wired disposable ECG electrode
• Size: 22 × 22 mm
• Skin-friendly non-woven fabric
• Ag/AgCl sensor
• Fixed 60 cm cable with DIN plug
• Latex-free, 3 pieces per bag
• 3 cable colors (white, black, red)

Areas of application

• Neonatal ECG
• Pediatric monitoring
• intensive care unit
• long-term monitoring

Pre-wiring reduces handling effort and minimizes incorrect connections in everyday clinical practice.
